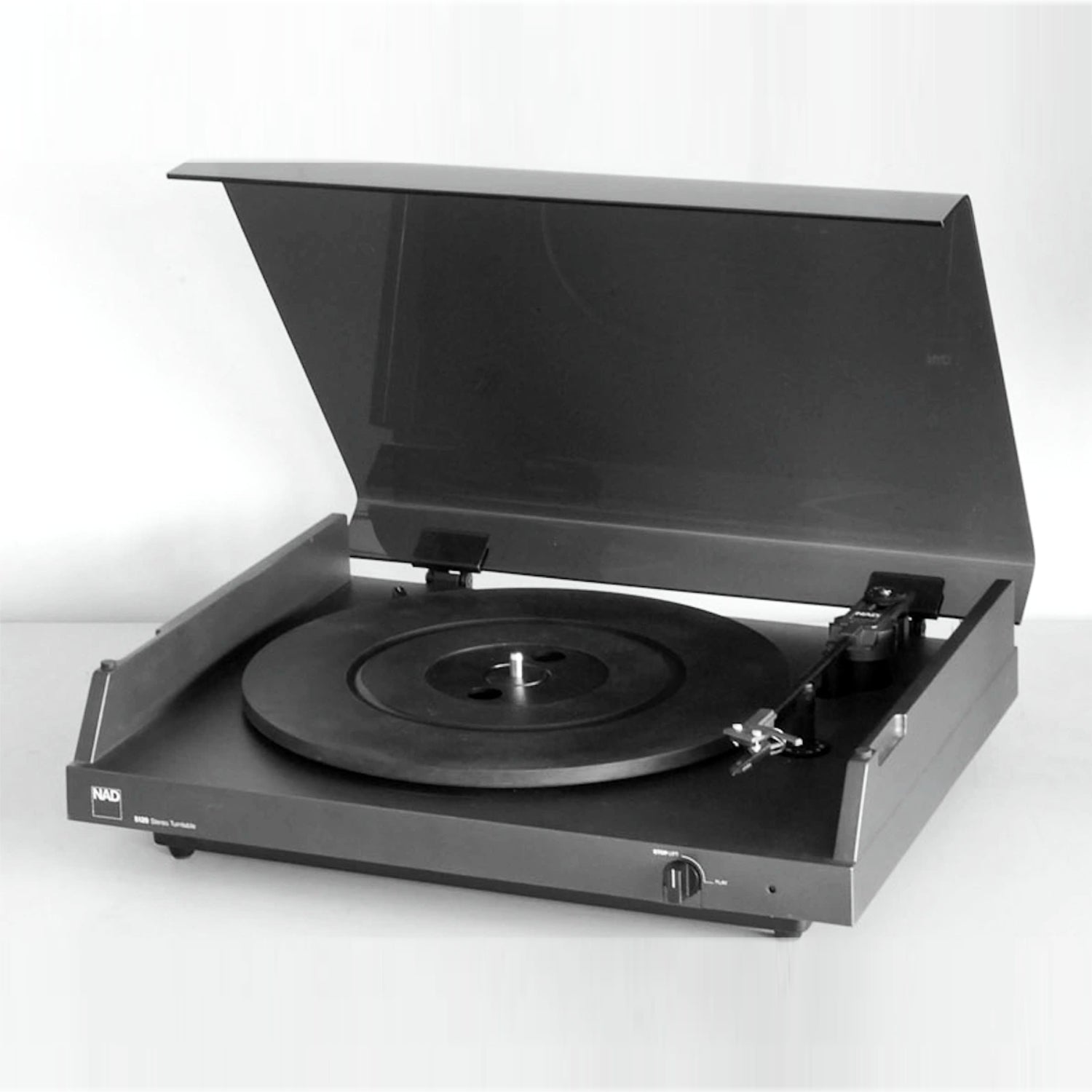

NAD 5120 Stereo Turntable

• Previously Owned
• Collection from Holdrons Arcade Only
• Demonstration Available Upon Request (email us)

The 5120 incorporates all the vital features of a hi-fi turntable needed to achieve outstanding musical performance. A high quality synchronous motor ensures that the belt driven platter maintains accurate speeds without rumble or flutter.

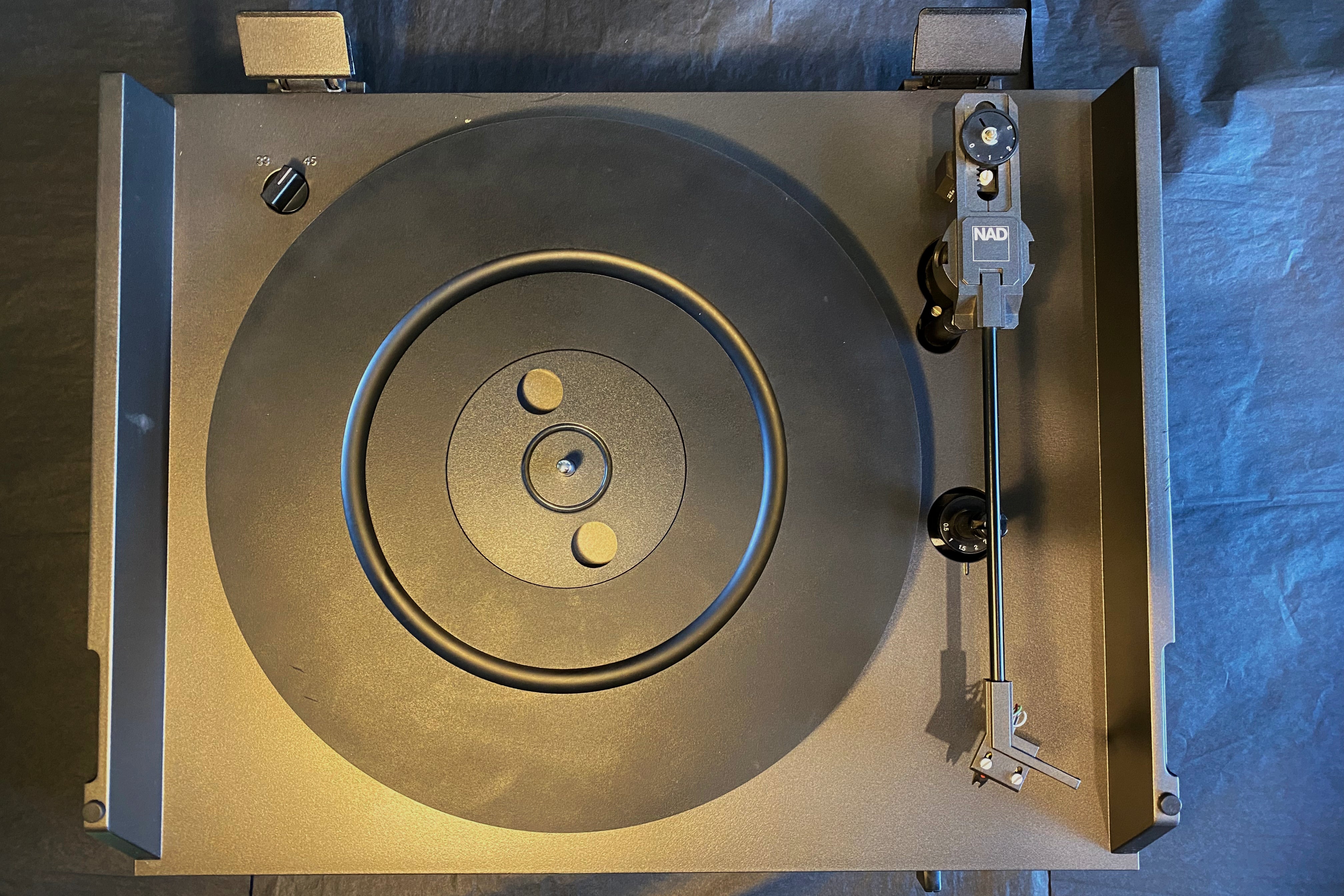

The platter, a light stamped-aluminum disc, is belt-driven at fixed speeds of 33-1/3 or 45 rpm by a low-speed (360-rpm) synchronous a.c. motor. Speed is changed by a knob on the motorboard that shifts the belt to a different pulley diameter. A thick and unusually heavy rubber mat fits snugly over the platter (the two have a combined weight of 2-1/4 pounds).

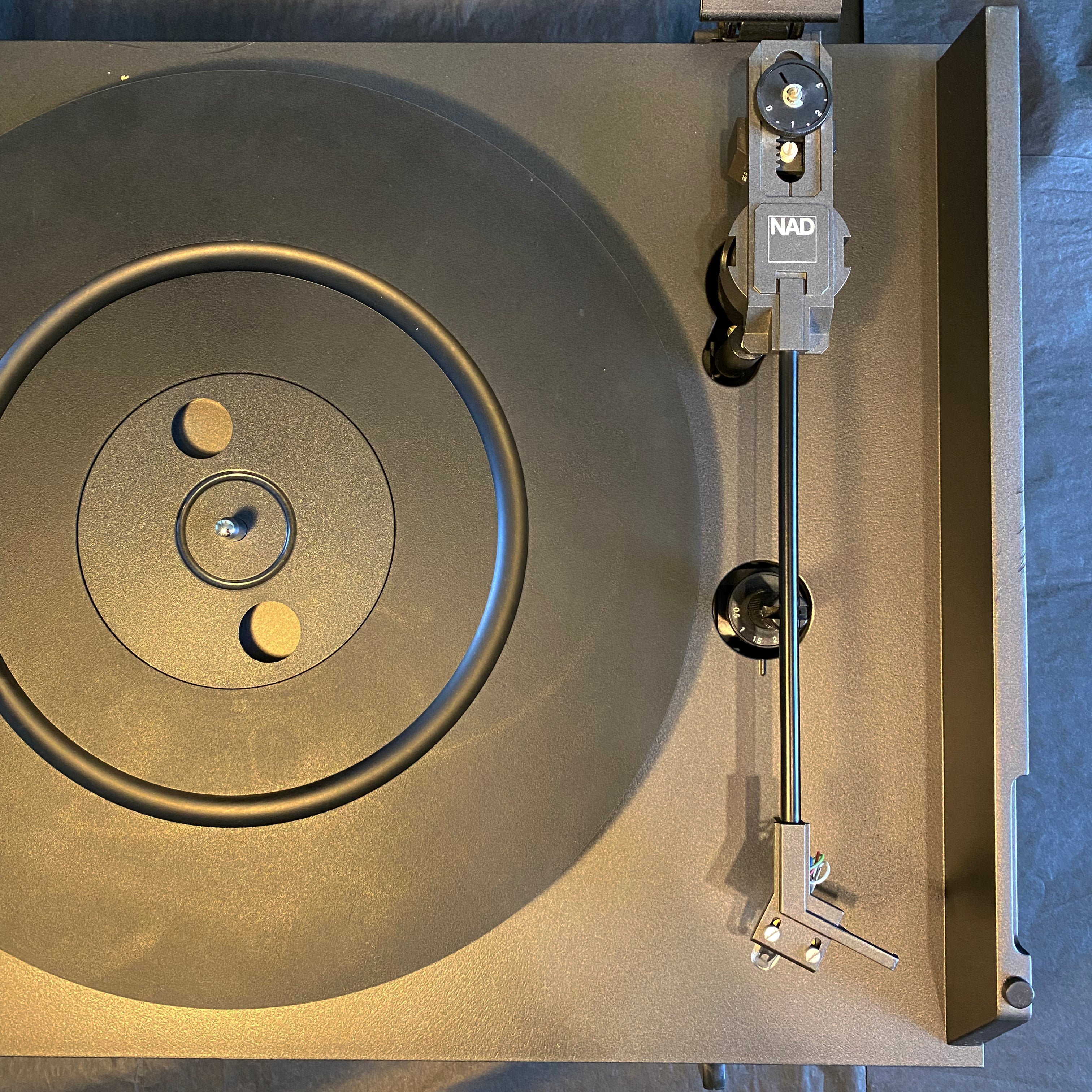

NAD’s Dynamic Vibration Absorber (DVA) free floating tonearm counter-weight ensures absolute stylus tracking stability and freedom for muddying resonances.

SPECIFICATIONS

• Turntable Drive system: Precision neoprene belt drive
• Motor: Synchronous motor; 360 rpm at 60 Hz, 300 rpm at 50 Hz
• Speeds: 33.3 and 45.1 rpm
• Speed Accuracy: 0.5%
• Wow and Flutter: 0.07% DIN peak
• Signal/Noise Ratio: -70 dB (DIN B weighted)
• Suspension System: Platter and tonearm rigidly mounted on subchassis floating on high compliance springs
• Suspension Resonance: <4 Hz
• Tonearm Features: Interchangeable, statically balanced

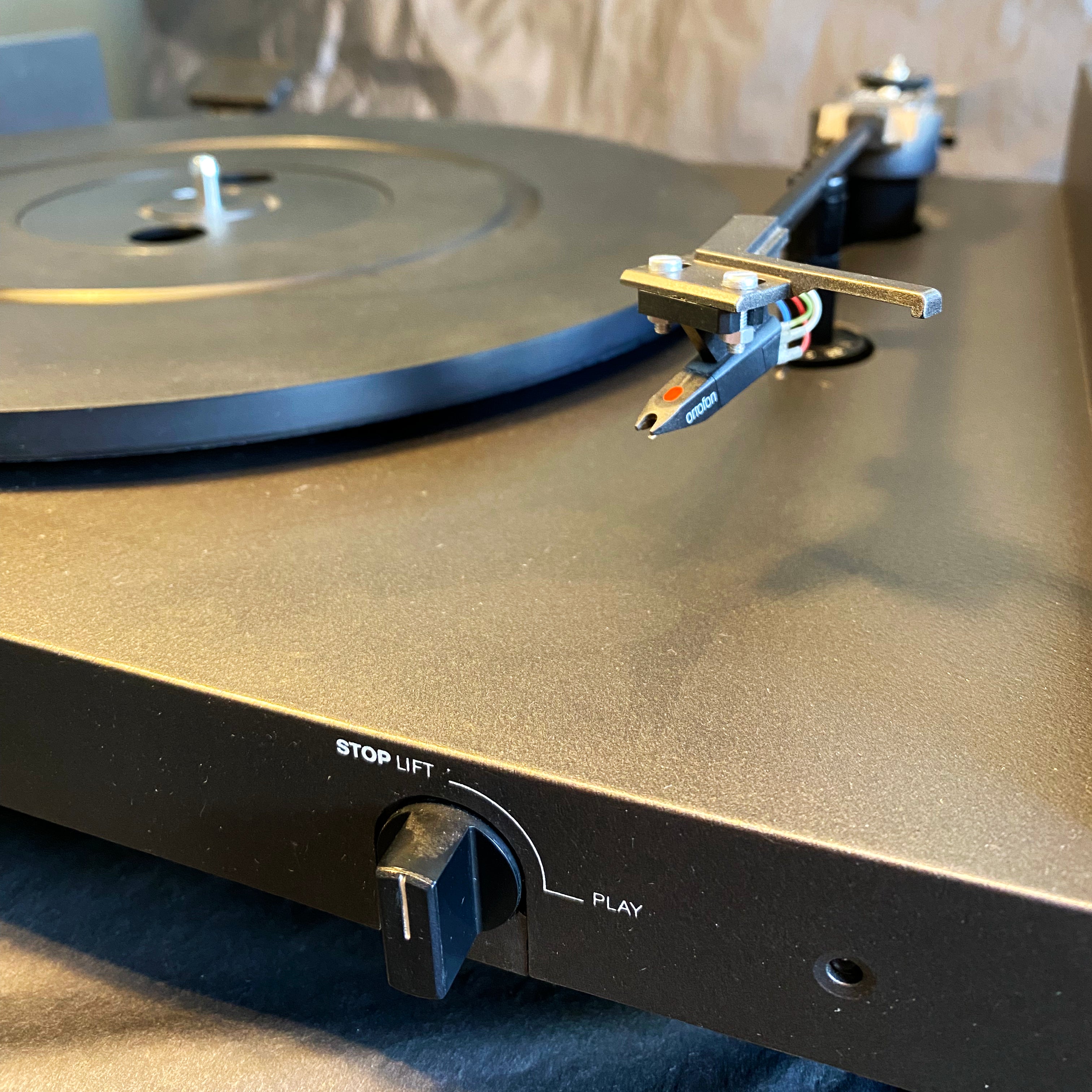

• Operation: Semi-automatic (Automatic lift & stop at end of record)
• Length: 278 mm; 208 mm pivot to stylus
• Effective Mass: 9 grams
• Overhang: 19.1 mm
• Offset Angle: 26º
• Lateral Tracking Error: Zero at R-636 and 119 mm
• Maximum Tracking Error: 0.16º/cm
• Cartridge Weight: 4 – 8 grams
• Vertical Tracking Force: 0 – 3 grams
• Cable Capacitance: 100 pF
• Dimensions: 435 (W) x 354 (D) x 105 (H) mm
• Weight: 5kg
